PNMA II

For nonreactive access

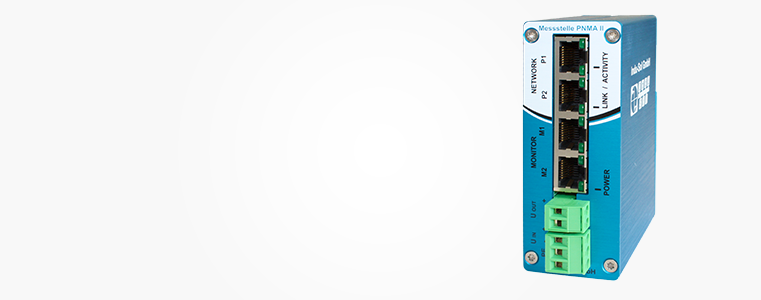

PROFINET measuring point PNMA II

The PNMA II provides nonreactive access for telegram recording in the PROFINET and other Ethernet-based networks during running production.

Highlights PROFINET measuring point PNMA II

  • If connecting a PROFINET-INspektor® NT via a PNMA II, only two additional patch cables are needed (no crossover cable required).
  • In case of a power supply failure the PROFINET communication via the PNMA II remains intact.
  • Power supply of additional analytic tools via the UOUT (24VDC) connector
  • PNMX IP 67 for rough production environments

Function

Analysis tools (e.g. PN-INspektor® NT or laptop) can be connected nonreactive to the two monitor jacks to monitor both communication directions simultaneously. For evaluation of the
measurement results the telegrams from both communication
directions can be overlaid. The PNMA II / PNMX does not discard
error telegrams. Instead, it forwards them.

Properties

  • Monitoring of all protocols
  • Supports all packet sizes
  • No packet loss
  • All connection ports on the front panel
  • No additional effort to connect a measuring device
  • Tested interaction with the PROFINET-INspektor® NT
  • No free switch port necessary
  • Bi-directional data transmission up to 100 Mbps
  • No network interruption when connecting diagnostic tools

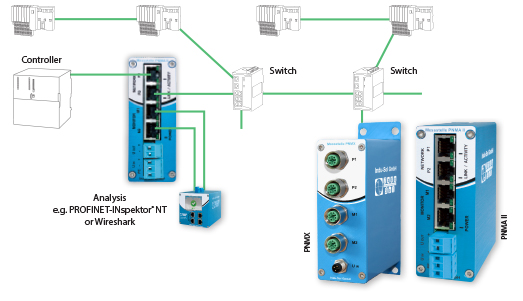

Integration PNMA Integration of the PNMA II measuring point (also PNMX) in the PROFINET network

Product details

Request offer for PROFINET measuring point PNMA II
Product name Art. No.
114090100


Downloads


PROFINET brochure

PROFINET brochure Indu-Sol GmbH

Technological coherences in detail that are based on the latest valid standards and guidelines

Catalogue

Catalogue 2013/2014 Indu-Sol GmbH

Solutions and products for fieldbus and network analysis
