工业以太网网络/基础设施组件
工业以太网的强大组件
管理型工业交换机PROmesh
PROmesh交换机系列包括三个高性能工业交换机产品系列，适用于所有应用和各种环境状况。永久安装在控制柜中或分散安装在IP67环境的现场中。高于平均水平的质量、性能和多功能性是PROmesh系列产品自带的特征。
- 访问PROmesh P产品系列
- 访问PROmesh B产品系列
-
Switches
Ethernet/PROFINET Switch PROmesh P9
The Indu-Sol Ethernet/PROFINET Switch PROmesh P9 is equipped for the increased performance requirements in the industrial ethernet and conforms to Conformance Class B requirements. This functionality makes it possible to integrate the switch into the automation system (Step7, TIA Portal) by an engineering tool in order to make a comprehensive network diagnostics feasible.
Highlights:
✓ Leakage current monitoring ✓ 9 x 100 MBit/s RJ45 ports ✓ Optimised shielding contact ✓ Compact design ✓ Displays port utilisation and discards on web interface
PROFINET/Ethernet Switch PROmesh P10
The PROmesh P10 is a 10 port Gigabit switch for industrial environments. It is ideally suited for use in PROFINET and Industrial Ethernet networks. It impresses especially with its helpful diagnostic and monitoring functions, such as line monitoring during running plant operation.
PROFINET/Ethernet Switch PROmesh P20
The PROFINET/Ethernet Switch PROmesh P20 is another switch of the PROmesh series from Indu-Sol. The functions of the Promesh P9 can be found in this switch. In addition to the 20 ports, the switch has firewall functionality and gigabit support.
Highlights:
✓ Leakage current monitoring ✓ 16 x 10/100 MBit/s RJ45 ports ✓ 4 x 1000Base-X SFP ports ✓ Optimised shielding contact ✓ Compact design ✓ Displays port utilisation and discards on web interface ✓ NAT Routing/Firewall function ✓

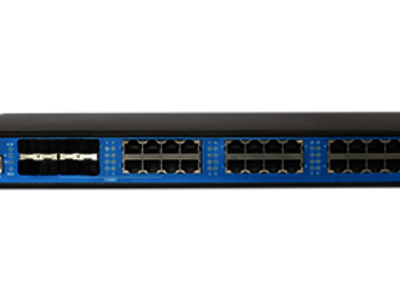

Ethernet Switch PROmesh P28-R
The Ethernet Switch PROmesh P28-R is designed for machine and system-level communication and for 19-inch rack mounting. This switch is available with and without routing functionality.
P = Ports | R = Rack | L = Layer

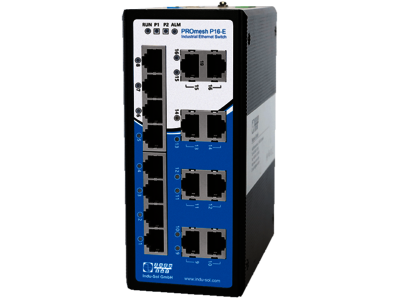

Ethernet Switches of the PROmesh Series for DIN-rail mounting
The PROmesh family from Indu-Sol also offers the following Ethernet switches.
P = Ports
E = Ethernet
GE = Gigabit Ethernet
PoE = Power over Ethernet

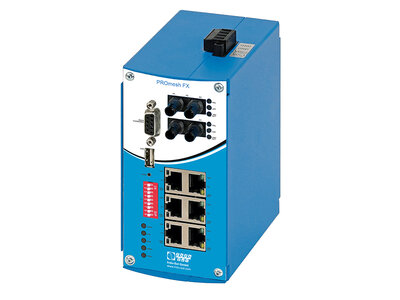

Ethernet/PROFINET Switch PROmesh FX
The managed switches of the PROmesh FX series have, in addition to the 6x RJ45 ports, two fiber optic ports for a network extension of up to 30 km. The system can be used for line structures as well as for redundant ring structures.
In addition to the complete PROFINET functionality and the integrated diagnostics of the fiber optic, many useful management functions can be used.
Fiber type:
SM = Single Mode
MM = Multimode
Fiber-connector:
SC = SC-Connector
ST = ST-Connector
