ASi View

Simple and fast system analysis

ASi Bus Tester - ASi View

The he ASi View is a mobile diagnostic device for your ASi network. You can "snap on" the line very easily and obtain the current bus status with just one click. With the ASi View you can analyze both physical parameters and logical telegram traffic under running production conditions.

Highlights of the ASi View

  • Immediately ready for operation - no separate power supply required
  • Physical evaluation with bar chart
  • Depth analysis with oscilloscope function
  • Analysis of telegram traffic

Bus status with one click

One mouse click gives you an overview of the actual communication quality. All determined values are displayed as bar graphs for each station. The bus status for the logical and physical quality parameters is displayed in a way that is easy to understand by means of color coding, similar to a traffic light function.

ASi View start window Start window

Contacting with a "notch"

The ASi View can be easily connected to the ASi bus using the enclosed M12 adapter cable and ASi measuring adapter (ASiMA) connection accessories. The adapter required for this is simply clipped onto the ASi cable. The immediate vicinity of the master and the respective ends of the individual ASi segments are recommended as the measurement location.

Physical evaluation

The measured value (bar height) should not fall below the preset quality limit of 100%. Each bar is an image of the bit shape resulting from the time response and the level of the transmitted signal per station.

ASi View signal quality Signal quality

In-depth analysis

For depth analysis, an integrated oscilloscope is available with which EMC interference, signal shape problems and reflections can be detected for each participant. In addition, an "eye diagram" can be used to further display the bit shape. Depending on the "eye opening" there is information about the noise behaviour of the ASi signal.

Oscillograms Oscillograms
Indu-Sol ASi View eye-diagram Eye-diagram

Logical evaluation

The analysis of the telegram traffic provides information about the number and type of subscriber-specific telegram errors. It is classified whether the call or the response failed. In addition, the pause times between the master calls and the slave responses per station are determined. The pause time of 50us (limit value: 60us) should not be exceeded.

Asi View Details Fehlerstatistik Details Fehlerstatistik

Produktdetails

Request offer for ASi View
Product name Art. No.
120010001


Downloads


Catalogue

Catalogue 2013/2014 Indu-Sol GmbH

Solutions and products for fieldbus and network analysis


Do you have any questions?

We are at your service for all questions concerning our products and solutions.

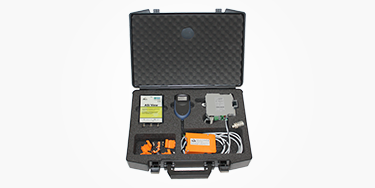

ASi Diagnostic Set
