PROmesh: Industrial Switches for Ethernet / PROFINET

The first industrial switches with integrated diagnostics and monitoring

Powerful network communication meets network diagnostics and monitoring!

PROmesh is the first product series of industrial switches which combines future-oriented requirements for increasing data volume and targeted maintenance. As performance-oriented network infrastructure components, PROmesh switches support both electrical designers and electrical planners in the implementation of advanced plant and hall networks. Furthermore, the integrated diagnosis and monitoring functions allow a central, professional and easy supervision of your industrial networks - without additional measuring devices or manual measuring efforts. This relieves the workload on your maintenance department and provides targeted support.

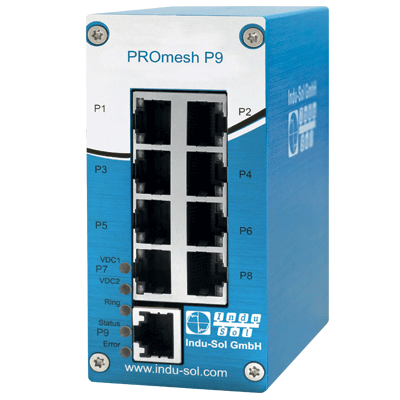

PROmesh P9

Leakage current monitoring
Network utilisation with millisecond precision
Conformance Class B
Diagnosis function
Port statistics
Netload Class III
9x10/100Base-TX RJ45-Ports
Download data sheet (PDF)

Request a quotation PROmesh P9

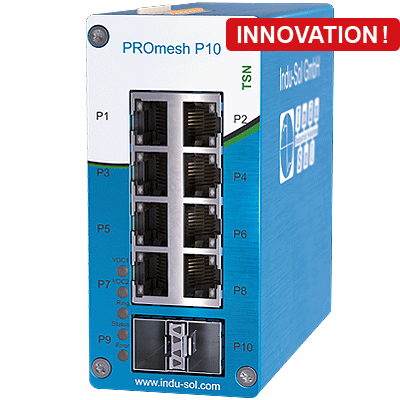

PROmesh P10

8x RJ45 ports (10/100/1000 Mbps)
2x SFP ports (up to 2500 MBit/s)
PROFINET v2.4 compliant
Gigabit capable, TSN-ready
Cable diagnosis and monitoring
Further diagnosis and monitoring functions
Download data sheet (PDF)

Learn more about the PROmesh P10

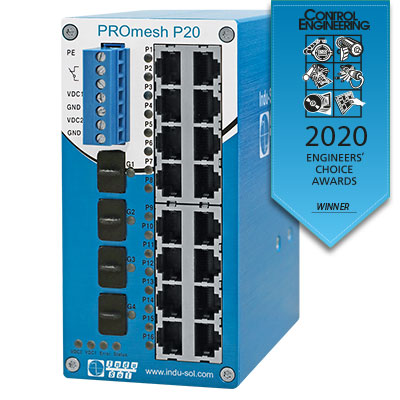

PROmesh P20

In addition to the functional range of the PROmesh P9:

16 x 100 Mbit/s RJ45 Ports
4x1000Base-X SFP-Ports
NAT Routing/Firewall function
Gigabit support
Use directly after the controller
Download data sheet (PDF)

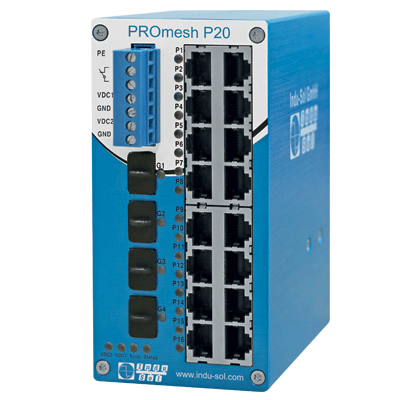

Industrial Switch for Ethernet and PROFINET - PROmesh P20

PROmesh P28-RL

16x RJ45 ports (10/100/1000 Base-T(X))
8x Combo RJ45 (10/100/1000 Base-T(X)) or SFP (1000Base-X)
4x SFP+ (10GBASE-X)
Download data sheet (PDF)

The provided functionalities allow the PROmesh P28-RL to be specifically trimmed to the needs of your network. This means that any kind of network concept and structures such as VLAN, redundancy, routing and security can be implemented.

Get your personal offer.

Would you like to know more? We would be pleased to send you a personal offer and further information about the PROmesh switches of your choice.

Please choose your PROmesh product/s, enter your contact details, DONE!

Request offer for Diagnostic switches

Product name	Art. No.
PROmesh P9 (9 Port-Industrial Ethernet Switch)	114110190
PROmesh P10 (8+2 Port-Industrial Ethernet Switch)	114110200
PROmesh P20 (16+4 Port-Industrial Ethernet Switch)	114110150
PROmesh P28-RL (28 Port-Industrial Ethernet Switch)	114110110

Mechanical engineers, maintenance engineers and IT experts pay attention!

The video "The SWITCH - The network professional | Technology made easy " shows you in an easy-to-understand way

the basic functions of a industrial switch,
how to achieve optimal network performance,
what you need to know about network diagnostics using switches.

↑↑↑ Click now and watch the video ↑↑↑

Large functional range with compact design

Display of network utilisation

The PROmesh determines the network utilisation with millisecond precision and displays this graphically on the web interface.
Display of discards

PROmesh P9 counts number of lost telegrams (discards) on the web interface
Highest network load resilience

Netload classes define the sturdiness of a device in regard of the intensity of the data traffic. The PROmesh P9 is certified for the highest netload class III which is the first time a switch with more than 4 ports fulfils these requirements. Therefore, the new switch is the foundation for a frictionless operation thanks to stable network communication.
Bandwidth management

Data traffic can be limited by adjustable thresholds in order to avoid network load peaks. Data above the maximum value is discarded.

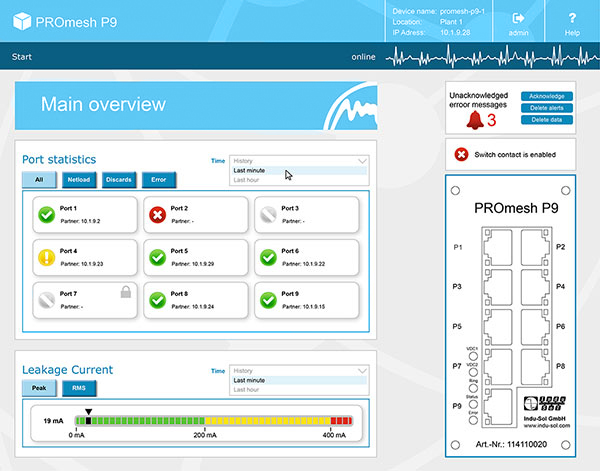

Screenshot PROmesh P9 webinterface: Port assignment & port status at a glance

In accordance with Conformance Class B

The PROmesh P9 has full PROFINET IO functionality and thus meets the usual requirements for PROFINET real-time communication in factory and process automation.
The functionality of PROFINET IO devices is divided in clear conformance classes. These summarise different minimum characteristics. For infrastructure components like switches the conformance class B is of special importance as it includes the fundamental PROFINET functionalities and therefore covers the requirements of 99% of all the PROFINET networks installed in the field.
Up to 4 queues per port

The PROFINET switch has a large buffer memory for telegrams, which can not be forwarded at the moment. Up to four queues are available per port.
Additional management functions

In addition to the PROFINET functionalities, you also have other management functions at your disposal such as Port Mirroring, SNTP and packet filter rules for prioritisation of packets.
Leakage current monitoring

Permanent leakage current monitoring with corresponding frequency spectrum according to the PI guidelines
