PROmesh managed and unmanaged Industrial Switches

Performance & Condition Monitoring vs. Functionality & Price Awareness

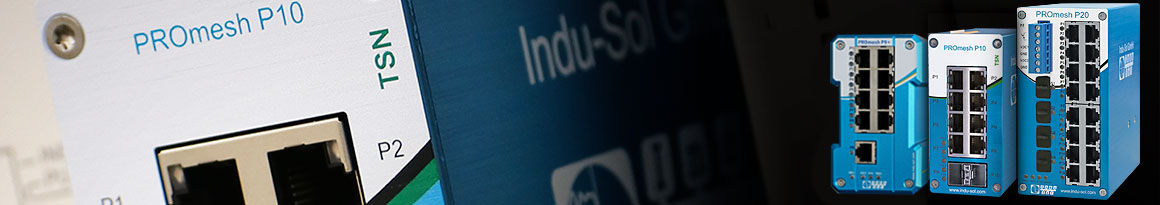

PROmesh managed and unmanaged Industrial Switches
PROmesh: Industrial Switches - Premium LinePremium Line
PROmesh: Industrial Switches - Basic LineBasic Line
PROmesh: Industrial Switch - Unmanaged LineUnmanaged Line

The PROmesh Premium Line

High-performance network communication meets network diagnostics and monitoring - without compromise

PROmesh represents the first product series of high-performance "diagnostic industrial switches". For the first time, the symbiosis of network performance, diagnostics and monitoring unites the demands of modern electro-construction and effective, predictive maintenance of automation and industrial plants. Discover the advantages of PROmesh!

  • Integrated network monitoring functions with notification
    Keep an eye on the status of your system or network section - seamlessly, traceable at all times
  • Integrated diagnostic functions
    Localise fault sources - without additional measuring devices or loss of time due to manual measuring efforts
  • Performance-oriented industrial switch technology
    Ready for future-oriented requirements for the increasing data volume in ever more complex machine/hall networks
  • Integrated web interface
    Enjoy full access to monitoring and diagnostic data - even without additional software



User feedback

Reference Thomas Wimmer TGW Logistics
"For us, the PROmesh acts not only as a switch but also as a sensor that makes important values ​​from the machine process digitally available without additional hardware. [...] Because of the cable lengths, it was a special requirement for us that leakage currents should also be measured. [...] Equally important was the continuous monitoring of moving data lines in order to be able to preventively maintain cables that are subject to wear." Thomas Wimmer, TGW Logistics

Advice? Technical questions?

We are happy to support you in selecting the optimal switch for your requirements.

  • Tim Creutziger

    Tim Creutziger

    Product Manager - Industrial Ethernet Infrastructure
PROmesh: Use network monitoring conveniently via web interface - test now

Discover the PROmesh web interface and functions. Directly in your browser. With three selectable practical scenarios.

The PROmesh Industrial Switches in detail

PROmesh P9+

In stock

  • Online cable diagnostics
  • Leakage current monitoring
  • Millisecond-precise display of the network load
  • Diagnostic functions
  • PROFINET v2.4 certified
  • Conformance Class B
  • Netload Class III
  • 9x RJ45 (up to 1 Gbps)

Industrial Switch PROmesh P9+

Downloads and documents

Technical data
EN (PDF | 409 kb)
DE (PDF | 408 kb)

Manual
EN (PDF | 3,2 MB)
DE (PDF | 3,7 MB)

ePlan-Makro
» To download area

Quick Start Guide
EN/DE (PDF | 812 kb)


GSDML file
» To download area

show all show less

PROmesh P10

In stock

  • Online cable diagnostics
  • Leakage current monitoring
  • Millisecond-precise display of network load
  • PROFINET v2.4 certified
  • Conformance Class B
  • Netload Class III
  • 8x RJ45 (up to 1.0 gbps)
  • 2x SFP (up to 2.5 gbps)

Industrial Switch PROmesh P10

Downloads and documents

Technical data
EN (PDF | 406 kb)
DE (PDF | 409 kb)

Manual
EN (PDF | 2,30 mb)
DE (PDF | 2,44 mb)

ePlan-Makro
» To download area

Catalogue data sheet
EN (PDF | 301 kb)
DE (PDF | 305 kb)

Quick Start Guide
EN/DE (PDF | 351 kb)


GSDML file
» To download area

show all show less

PROmesh P10X

In stock

  • Online cable diagnostics
  • Leakage current monitoring
  • IP67-certified (waterproof/dustproof)
  • Millisecond precise display of network load
  • PROFINET v2.4 certified
  • Conformance Class B
  • Netload Class III
  • 8x M12 D-coded (up to 100 mbps)
  • 2x M12 X-coded (up to 1.0 gbps)
Industrial Switch PROmesh P10X

Downloads and documents

Technical data
EN (PDF | 529 kb)
DE (PDF | 531 kb)

Manual
EN (PDF | 2.58 mb)
DE (PDF | 2.50 mb)

ePlan-Makro
» to download area

Catalogue data sheet
EN (PDF | 390 kb)
DE (PDF | 375 kb)

Quick Start Guide
EN/DE (PDF | 485 kb)

GSDML file
» To download area

show all show less

PROmesh P20

In stock

  • Leakage current monitoring
  • NAT routing / firewall function
  • Millisecond-accurate display of network load
  • PROFINET v2.3 certified
  • Conformance Class B
  • Netload Class III
  • 16x RJ45 (up to 100 mbps)
  • 4x SFP (up to 1.0 gbps)
Industrial Switch PROmesh P20

Downloads and documents

Technical data
EN (PDF | 448 kb)
DE (PDF | 448 kb)

Manual
EN (PDF | 2,88 mb)
DE (PDF | 2,90 mb)

ePlan-Makro
» To download area

Catalogue data sheet
EN (PDF | 293 kb)
DE (PDF | 295 kb)

Quick Start Guide
EN/DE (PDF | 1,51 mb)


GSDML file
» To download area

show all show less

PROmesh P8+F

In Stock

  • Online cable diagnostics
  • Leakage current monitoring
  • Millisecond-precise display of network load
  • Diagnostic functions
  • PROFINET v2.4 certified
  • Conformance Class B
  • Netload Class III
  • 8x RJ45 (up to 1.0 gbps)
Industrial Switch PROmesh P8+F

Downloads und Dokumente

Technical data
EN (PDF | 819 kb)
DE (PDF | 827 kb)

Manual
EN available soon
DE (PDF | 3,34 MB)



Quick Start Guide
DE/EN (PDF | 435 kb)


GSDML file
» To download area

alle anzeigen weniger anzeigen

PROmesh Basic Line

Available from Dezember 2022

Industrial Switches Basic Line

You are looking for managed Switches High Performance but without Condition Monitoring?

Request your personal offer.

Angebotsanfrage PROmesh Switches

Would you like to learn more? We will be happy to send you a personal offer and further information on the PROmesh switches of your choice. Simply select PROmesh product/s, enter contact details, DONE!






Still not found the right one?



Sie suchen den passenden Industrie-Switch für Ihre Maschine?

High Performance for strong networks

PROmesh Basic Line

Available as of December 2022

Industrie-Switches PROmesh Basic Line

Are you looking for Switches with high performance but without additional diagnostics and monitoring features?

Quality + Reliability for uncritical use cases

PROmesh Unmanaged Line

In stock

Industrial Switches Unmanaged Line

Are you looking for unmanaged switches with simple functionality, well-known Indu-Sol quality and reliability?

Why you better install PROmesh switches instead of conventional industrial switches.

A modern industrial switch can do much more than just distribute data packets in the best possible way across the (plant) network. Due to their central location in individual network sections, industrial switches are ideal for supporting maintenance and ensuring plant availability.

Condition monitoring and diagnosis without additional measuring devices

Each industrial switch processes the incoming data signals in order to pass them on to the correct receiver. In addition to the conventional transmitter-receiver assignment, PROmesh switches analyse incoming signals, similar to the well-known PROFINET-INspektor® NT. This enables permanent status monitoring of the communication quality and signal strength. Changes and anomalies can thus be easily seen and checked at an early stage - before communication or processes are affected.

Reliable diagnostic data from the very first second

PROmesh switches are also capable of identifying common sources of interference. Whether sporadic EMC load, network load peaks or damaged data lines - if an anomaly is noticed by PROmesh or your maintenance department, initial diagnostic data is already available - without manual measurement effort. This saves you time and money in critical troubleshooting.

PROmesh Industrial Switches - Download leaflet

Download free info sheet "PROmesh

All PROmesh products and the most important technical data at a glance - including recommended selection criteria for industrial switches.

Attention machine manufacturers and maintenance personnel!

In the short explanatory video we show you in an easy-to-understand way:

  • the basic functions of an industrial switch,
  • how you can achieve optimum network performance,
  • what you need to know about network diagnostics with the help of switches.

PROmesh P10: Gigabit Industrial Ethernet Switch as a component of high-performance, stable industrial networks

Network planning: consulting & conception
Whether new or existing plant: we provide stable industrial networks that match your requirements.

PROmesh P10 - Industrial Ethernet Switch combined with network planning software

Planning software PROnetplan V2
Check your planned system and network layout in advance for weak points and network load bottlenecks.

PROmesh Industrial Switches: Related topics and products - PROFINET network design Whitepaper

Designing PROFINET correctly.
Important insights and expert tips for better designing your PROFINET network.

PROmesh Industrial Switches: Related Topics and Products - Fault Source:Data Line

Underestimated source of error: data line
More than 50% of all faults in industrial networks are line-related. How come?
