PROmanage® NT V2
Network status at a glance
Gradual aging, wear and tear in the production environment and bottlenecks lead to progressive deterioration in the quality of networks.
The network management software (NMS) PROmanage® NT provides timely warning when abnormalities appear. The early warning enables you to carry out maintenance in good time, thereby minimizing breakdowns and plant outages.
PROmanage® NT makes it possible for you to analyze and evaluate information on the condition of fieldbus systems and industrial networks and store it on the long haul. The information is transmitted to a central point to provide you an overview. You can leave healthy networks alone, avoiding unnecessary maintenance but taking action any time an alarm warns you of abnormalities.
Integrated management of threshold values allows the user to specify the limiting values for network parameters. As soon as these threshold values are reached, an entry complete with time stamp is written automatically into the event log. Just one click is needed to retrieve network disturbances from the event log.
The implemented alarm management system provides automated message forwarding. The user selects the desired medium (email, messaging services, OPC, SNMP) to transfer messages in a timely manner directly to the appropriate area of responsibility, thereby shortening action times and avoiding unnecessary plant breakdowns.
New features of PROmanage® V2.1

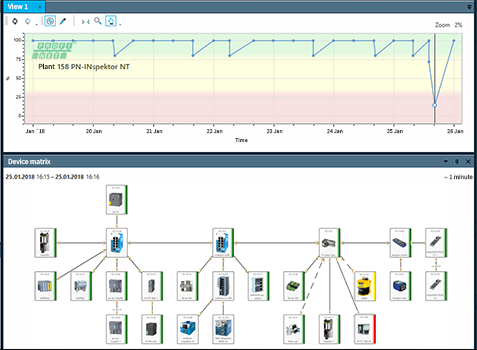

- Topology display with diagnostic data
- Integration of PROscan® Active possible
- Centralized monitoring for all fieldbusses and networks
- Avoids plant outages
- Timely warning of abnormalities via OPC, SNMP or email
- Data are available to-the-minute up to one year
- Easy device setup by means of an automated or manual device scan
* The license defines the maximum number of network ports or devices retrieved simultaneously. Ethernet Switch: 1 network port = 1 license port
1 PROFIBUS-INspektor® = 8 license ports
1 PROFINET-INspektor® = 16 license ports
1 other INspektor® = 8 license ports
