Conductor terminals EMClots®

The use of EMClots® significantly facilitates the implementation of a distributed equipotential bonding system (CBN). A variety of components can be used for connecting, fastening and branching of bare conductor cables of extra-fine wire and stranded type. Undefined interference currents are thus prevented, and uniform equipotential bonding is implemented even in long production lines. They are ideally suited for implementing small-loop low-impedance bonding systems for machines and installations using higher-frequency drive solutions (inverters) as required by EN 50310.

Highlights fastening elements EMClots®

  • Average 10% saving in material
  • Average 35% less installation effort
  • Much higher EMC resistance

Conventional CBN: According to current practice, electronic components (PLC, drives, remote I/O) are mostly connected to a central earthing point in a star-shaped arrangement - in which the use of insulated conductors is very common.

Optimum CBN: A strong meshing in the bonding system reduces the loads on the system itself. This is achieved by as many short connections as possible between devices and conducting elements. All bonding conductors must be implemented as bare (uninsulated), tin-plated, low-impedance strands. The use of field-capable fasteners/terminals like EMClots® makes the design of efficient conductor paths possible.

Equipotential bonding with EMClots® conductor fastenersconventional CBN (star-shaped) vs. optimum CBN (meshed)

EMClots® - connecting, fastening and branching of bare conductor cables

EMClots® Fastening for conductorsEMClots® Fastening V2

EMClots® Fastening V2 elements are suitable for stranded or extra-fine wire conductor cables of 4 to 16 mm² or 25 to 35 mm². They are used to fasten a conductor cable. They are mounted to cable trays, cross beams, or other conductive system components.

  • Fastening V2 4-16 mm²: 18 mm x 18 mm x 20 mm (HxWxD)
  • Fastening V2 25-35 mm²: 22 mm x 22 mm x 22 mm (HxWxD)
EMClots® Connector conductor fastenerEMClots® Connector V2

EMClots® ConnectorV2 elements are suitable for stranded or extra-fine wire conductor cables of 4 to 16 mm² or 25 to 35 mm². They are used to connect two conductor cables. They are mounted to cable trays, cross beams, or other conductive system components.

  • Connector V2 4-16 mm²: 18 mm x 18 mm x 30 mm (HxWxD)
  • Connector V2 25-35 mm²: 22 mm x 22 mm x 34 mm (HxWxD)

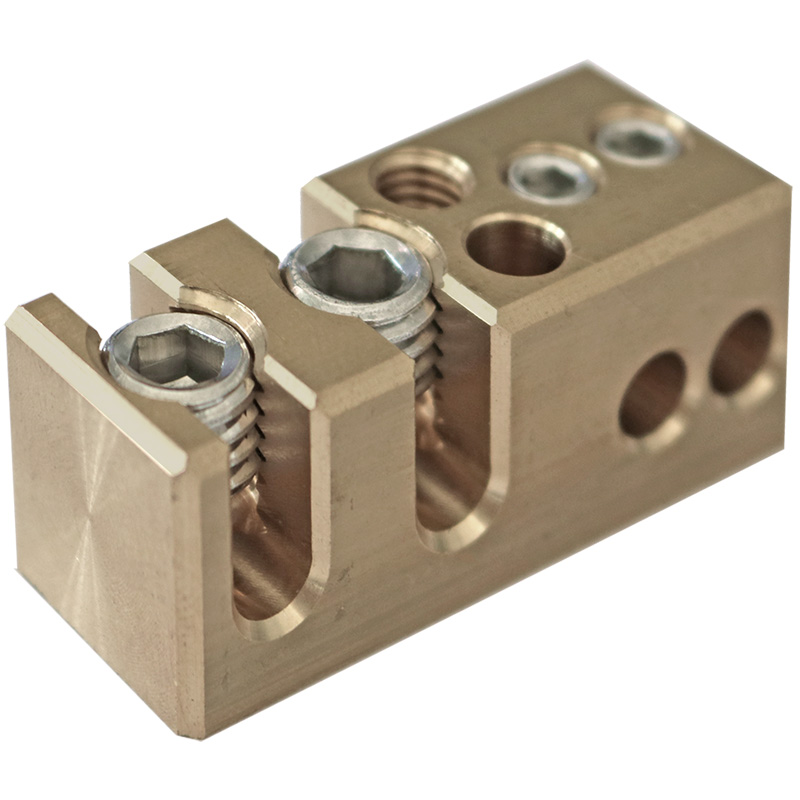

EMClots® Junction for switching conductorsEMClots® Junction V2

EMClots® Junction V2 elements are suitable for stranded or extra-fine wire conductor cables of 4 to 16 mm² or 25 to 35 mm². They are used to connect three conductor cables, or to create a stub. They are mounted to cable trays, cross beams, or other conductive system components.

  • Junction V2 4-16 mm²: 18 mm x 18 mm x 33 mm (HxWxD)
  • Junction V2 25-35 mm²: 22 mm x 22 mm x 41 mm (HxWxD)
EMClots® Junction connects conductor fastenersEMClots® Junction V2 triple

EMClots® Junction V2 triple elements are suitable for stranded or extra-fine wire conductor cables of 4 to 16 mm² or 25 to 35 mm². They are used to connect three conductor cables, or to create a stub. They are mounted to cable trays, cross beams, or other conductive system components.

  • Junction V2 triple, 4-16 mm²: 18 mm x 18 mm x 40 mm (HxWxD)
  • Junction V2 triple, 25-35 mm²: 22 mm x 22 mm x 51 mm (HxWxD)

What's the next step?

Combine the EMClots® conductor terminal blocks with the matching bare conductor cables from Indu-Sol and create a low-impedance equipotential bonding according to EN 50310 with infrastructure components from Indu-Sol.

Conductor cable terminal on top-hat railEMClots® with counductor cable

Product details

Request offer for EMClots®
Product name Art. No.
122180200
122180201
122180100
122180110
122180101
122180111
122180300
122180301

Appropriate conductor cables are available as infrastructure components


Downloads


Benefits

  • Functional design
  • Easy and quick installation
  • Less space required in the cable duct
  • High savings potential
  • Shorter wiring times

Application in cable trays and pipelines

Due to the conductive structure of EMClots®, metallic system components such as cable trays and pipelines are automatically integrated into the bonding system. Necessary wiring is reduced significantly.

How to install?


EMC brochure

EMC brochure

The brochure explains how to build up a stable EMC structure of automation systems and detect interferences
