PROFINET-INspektor® NT

Intelligent measuring point for online analysis and PROFINET monitoring

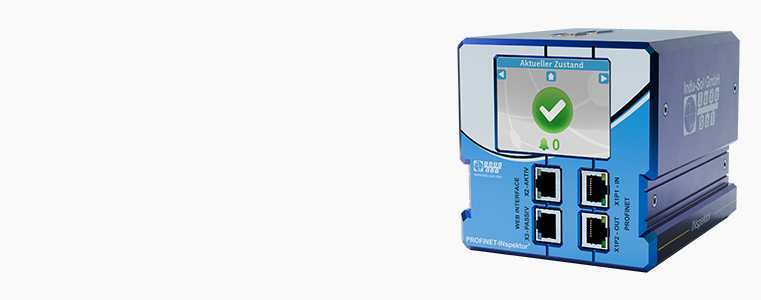

PROFINET-INspektor® NT diagnostic tool

The PROFINET-INspektor® NT is an important diagnostic tool for certification, commissioning and inspection of new installed PROFINET networks. Depending on the pre-defined trigger functions the events are registered in the PROFINET-INspektor® and summed up and stored per device. Hereby, the INspektor® detects quality values like network load, data throughput, refresh rate, telegram gaps and telegram jitter, that mirror the current status of communication quality. These parameters serve as commissioning and inspection criteria for new installations, but also as important information for maintenance and (remote) service.

Firmware version 2.2 introduces new functions

A short overview: Discover the new functions of the free firmware update

  • Fully automatic detection of device log-offs
    Cyclic tool changes of robots are automatically detected as device log-offs in permanent monitoring without any further configuration effort.
  • Automatic event-driven start of a topology scan
    Topology scans can now be started as an action on defined trigger events, such as new network participants or when the controller is accessed. This allows you to keep an eye on the most up-to-date network structure with all devices at all times.
    The topology is supplemented by the quality parameters determined by the PROFINET-INspektor® NT. These are visualised according to the familiar traffic light principle.
  • Extension of the switch statistics with PROmesh P10
    In addition to the previous available PROmesh switches, statistics and quality parameters of connected PROmesh P10 can be called up directly via your PROFINET-INspektor® NT. The quality parameters "line quality" and "transmission speed" available in the PROmesh P10 can be recorded and analysed directly via the connected INspektor - you have all relevant information at a glance.
  • Automatic adjustment of device condition ratings
    Based on historical occurrences, the evaluation criteria and threshold values of quality parameters can be automatically adapted to your individual requirements for each subscriber without additional configuration effort.  This makes setting up the PROFINET-INspektor® NT even easier and faster.

Proven features

  • Acceptance according to the PROFINET Design Guideline and Commissioning Guideline of PROFIBUS & PROFINET International
    Independent analysis and evaluation of PROFINET real-time communication
  • Topology determination incl. asset management
    Detailed description and presentation of the PROFINET network
  • Complete acceptance report with all relevant event information
  • Representation of the PROmesh switches
    Display of status-relevant port statistics and leakage currents
  • Self-learning threshold values - Threshold values are automatically determined for alarming after the acceptance test
  • Touch display that shows errors directly
  • Jitter statistics for all devices
  • Option to carry out active or passive network diagnosis
  • Uninterrupted monitoring, even at high net load
  • Synchronisation via time server
PROFINET-INspektor® NT - Overview and chronicleOverview and chronicle

Security features of PROFINET-INspektor® NT

  • Detects new and unknown devices in the network
  • Registers unauthorized programming or manipulation of the controller
  • Identifies even the smallest peak loads in resolving network loads exact to the millisecond
  • Recognizes telegram manipulation based on an increased jitter
PROFINET-INspektor® NT - Switch StatistikSwitch Statistics
PROFINET-INspektor® NT - Device OverviewDevice Overview
PROFINET-INspektor® NT - Netload DiagramNetload Diagram

PROFINET INspektor® NT as continuous network monitor

A permanent analysis of the network status is essential to ensure the PROFINET communication clocked in real time or to overview the amount of extrinsic communication (e.g. Ethernet by camera systems and displays).

Permanent monitoring of PROFINET communication wih the PROFINET INspektor NTIntegration of the PROFINET-INspektor® into the PROFINET network

The PROFINET INspektor® NT is permanently integrated into the plant network and permanently monitors the logical telegram traffic during running production conditions. The plant operator knows the current status of the network at any time and is therefore able to initiate concrete countermeasures before the fieldbus fails and the plant comes to a standstill. An integration of the PROFINET INspektor® into the detection system is possible and useful for permanent monitoring.

Integrated web interface

Thanks to the PROFINET INspektor® NT embedded web server the network state can be displayed without any additional software on any PC with an internet browser. Via the potential-free contact a visual alerting can be setted.
