PROFINET Infrastructure Components

Intelligent measuring point iPNMA

iPNMA combines the functions of a PROFINET measuring point with a simple network analysis. For evaluating, all recorded data should be queried and processed by the PROmanage® NT software. We recommend installing the measuring point permanently in the network connection between the automation device (controller) and the first switch.

Analysis of quality parameters:
✓ Telegram jitter ✓ Telegram gaps ✓ Telegram overtakes ✓ Netload ✓ Update rate ✓ Device diagnostics ✓ Device failures / restarts ✓ Error telegrams

Product name	Art. No.
Measuring point iPNMA	114090200

Measuring point PNMA II

The PNMA allows a non-reactive access to the PROFINET network without interrupting the production.

Technical details

Product name	Art. No.
Measuring point PNMA II	114090100

Measuring point PNMX IP67

Technical details

Product name	Art. No.
Measuring point PNMX	114090300

Switches

PROFINET/Ethernet Switch PROmesh P9

The Indu-Sol PROFINET Switch PROmesh P9 is the first Full-PROFINET Switch that is equipped for the increased performance requirements in the PROFINET and conforms to Conformance Class B requirements. This functionality makes it possible to integrate the switch into the automation system (Step7, TIA Portal) by an engineering tool in order to make a comprehensive network diagnostics feasible.

Highlights:
✓ Leakage current monitoring ✓ 9 x 100 MBit/s RJ45 ports ✓ Optimised shielding contact ✓ Compact design ✓ Displays port utilisation and discards on web interface

Product name	Art. No.
PROFINET/Ethernet Switch PROmesh P9	114110020

PROFINET/Ethernet Switch PROmesh P20

The PROFINET/Ethernet Switch PROmesh P20 is another switch of the PROmesh series from Indu-Sol. The functions of the Promesh P9 can be found in this switch. In addition to the 20 ports, the switch has firewall functionality and gigabit support.

Highlights:
✓ Leakage current monitoring ✓ 16 x 10/100 MBit/s RJ45 ports ✓ 4 x 1000Base-X SFP ports ✓ Optimised shielding contact ✓ Compact design ✓ Displays port utilisation and discards on web interface ✓ NAT Routing/Firewall function ✓

Product name	Art. No.
PROFINET/Ethernet Switch PROmesh P20	114110022

PROFINET/Ethernet Switch PROmesh P7X

The PROFINET/Ethernet Switch PROmesh P7X also belongs to the PROmesh series from Indu-Sol.
It has 7+7 10/100Base-M12 ports and is suitable for rough production conditions with a degree of protection of IP67.

Product name	Art. No.
PROFINET/Ethernet Switch PROmesh P7X	114110040

PROmesh FX Managed Switch PROFINET Indu-Sol

PROFINET/Ethernet Switch PROmesh FX

The managed switches of the PROmesh FX series have, in addition to the 6x RJ45 ports, two fiber optic ports for a network extension of up to 30 km. The system can be used for line structures as well as for redundant ring structures.

In addition to the complete PROFINET functionality and the integrated diagnostics of the fiber optic, many useful management functions can be used.

Fiber type:
SM = Single Mode
MM = Multimode

Fiber-connector:
SC = SC-Connector
ST = ST-Connector

Technical details

Product name	Art. No.
PROmesh FX MM-ST	114110030
PROmesh FX SM-ST	114110031
PROmesh FX MM-SC	114110032
PROmesh FX SM-SC	114110033

Industrial Wireless System BLUambas® PROFINET

For PROFINET wireless all common update rates from 1 ms are guaranteed. To build up a wireless PROFINET system one BLUambas^® master module and at least one BLUambas^® slave module are required. The maximum number of slave modules and PROFINET I/O devices depend on the BLUambas^® types. Each BLUambas^® PROFINET module can be configured as a master module as well as a slave module.

BLUambas^® is available with protection class IP20 or IP65 and can be freely selected within a radio link.

Please note that the antennas and adapters are not included in the delivery of the wireless data systems for PROFINET. These can be requested separately here.

BLUambas® PROFINET Classic

A PROFINET radio link can be established between a master module and a maximum of one slave module. A maximum of four PROFINET IO devices can be installed behind the radio link.

Antennas and adapters are not included and must be ordered separately.

Product name	Art. No.
BLUambas® PROFINET Classic master module IP20	125100200
BLUambas® PROFINET Classic master module IP65	125100201
BLUambas® PROFINET Classic slave module IP20	125100200
BLUambas® PROFINET Classic slave module IP65	125100201

BLUambas® PROFINET Comfort

A PROFINET radio link can be established between a master module and a maximum of four slave modules. A maximum of six PROFINET IO devices can be installed behind the radio link.

Antennas and adapters are not included and must be ordered separately.

Product name	Art. No.
BLUambas® PROFINET Comfort Funkmaster IP20	125100202
BLUambas® PROFINET Comfort Funkmaster IP65	125100203
BLUambas® PROFINET Comfort Funkslave IP20	125100202
BLUambas® PROFINET Comfort Funkslave IP65	125100203

BLUambas® PROFINET Premium

A PROFINET radio link can be established between a master module and maximum four slave modules. A maximum of six PROFINET IO devices can be installed behind the radio link. In addition PROFIsafe communication is transmitted.

Antennas and adapters are not included and must be ordered separately.

Product name	Art. No.
BLUambas® PROFINET Premium master module IP20	125100204
BLUambas® PROFINET Premium master module IP65	125100205
BLUambas® PROFINET Premium slave module IP20	125100204
BLUambas® PROFINET Premium slave module IP65	125100205

Connectors

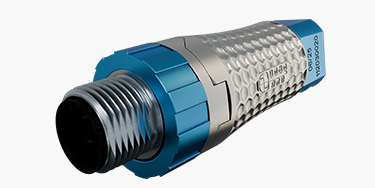

Round plug connector IE Fast Connect Plug PRO M12 (D coded)

The customizable M12 connectors permit an easy on-site assembly by its insulation displacement connection.

Technical details

Product name	Art. No.
Round plug connector IE Fast Connect Plug PRO M12 (D coded)	114030002

M12 circular connector Fast Connect to assemble

Technical details

Product name	Art. No.
M12 circular connector Fast Connect (plug)	112030002
M12 circular connector Fast Connect (socket)	112030001

Connector RJ45 Plug Fast Connect 180°/90°

With the Die IE FC RJ45 Plugs an industrial Ethernet fast-connect line can be optimally connected to terminal devices and network components.

Technical details

Product name	Art. No.
Connector RJ45 Fast Connect Plug 180°	114030003
Connector RJ45 Fast Connect Plug 90°	112030004

PROFINET connectors RJ45/8A Cat 6A configurable

Connector RJ45/8A Cat 6A configurable

The configurable plugs can be used for PROFINET applications and for transmission rates of up to 10 Gbps. The connector is equipped with insulation-displacement contacts, which means that no special tools are required for configuration. It can be used with PROFINET, Standard Ethernet and Ethernet Installation cables. The connector is fully shielded and suitable for industrial application in harsh conditions.

Technical details

Product name	Art. No.
Connectors RJ45/8A Cat 6A, 180°	112030008
Connectors RJ45/8A Cat 6A, 360°	112030009

Cables

PROFINET cable ⁺FE

The cables of the product series +FE are developed to run a cable in strongly EMC contaminated environments. The shield relief line fixed around the standard fieldbus cable implements the two features of an additional shield in an EMC contaminated environment and an additional functional equipotential bonding.

Technical details

Product name	Art. No.
PROFINET cable ⁺FE (type a - massive) (required lenght in meter in the field "Quantity", e.g. 10m)	114050002
PROFINET cable ⁺FE (type b - flexible) (required lenght in meter in the field "Quantity", e.g. 10m)	114060003
PROFINET cable ⁺FE (type c - drag-chain capable) (required lenght in meter in the field "Quantity", e.g. 10m)	114070002

PROFINET cable Cat 5, type a, massive

Technical details

Product name	Art. No.
PROFINET cable Cat 5, (type a - massive) (required lenght in meter in the field "Quantity", e.g. 10m)	114050001

PROFINET cable Cat 5, type b, flexible

Technical details

Product name	Art. No.
PROFINET cable Cat 5 (type b - flexible) (required lenght in meter in the field "Quantity", e.g. 10m)	114060001

PROFINET cable Cat 5, type c, drag-chain capable

Technical details

Product name	Art. No.
PROFINET cable Cat 5 (type c - drag-chain capable) (required lenght in meter in the field "Quantity", e.g. 10m)	114070001

PROFINET cable assemblies

Please note the ordering information. The required made-up cable and its article number has to be filled in in the field “Your message”.

Ordering information

Product name	Art. No.
PROFINET cable made-up, solid (the required made-up cable and its article number has to be filled in in the field “Your message”)	11405-xx
PROFINET cable made-up, flexible (the required made-up cable and its article number has to be filled in in the field “Your message”)	11406-xx
PROFINET cable made-up, drag-chain capable (the required made-up cable and its article number has to be filled in in the field “Your message”)	11407-xx
PROFINET cable made-up, outdoor (the required cable ends have to be filled in in the field “Your message”)	11408-xx

Control cabinet bushing SSD EMC

With the control cabinet bushing SSD EMC for front mounting in control cabinets and terminal boxes you provide an easy and optimal access to your control cabinet by RJ 45.

Technical details

Product name	Art. No.
Control cabinet bushing SSD EMC	114100001

Control cabinet bushing SSD

With the SSD bushing for front mounting in control cabinets and terminal boxes you provide an easy and optimal access to your control cabinet by RJ 45 or USB.

Technical details

Product name	Art. No.
SSD-E RJ45 (single, 2 x RJ45)	110060005
SSD-D RJ45 (double with socket-outlet German, 2 x RJ45)	110060003
SSD-B RJ45 (double w. customized. mains socket-outlet, 2 x RJ45)	110060002
SSD-E USB (single, 1 x USB + 1 x RJ45)	110060007
SSD-D USB (double w. socket outlet German, 1 x USB + 1 x RJ45)	110060004
SSD-B USB (double w. customized mains socket-outlet, 1 x USB + 1 x RJ45)	110060001
