INBLOX® Basic Repeater

Basic repeater with LED diagnosis

INBLOX® Basic Repeater

A reliable and undisturbed operation of modern production plants and industrial installations is essential these days. Therefore, a clear structuring and monitoring is not only useful in our eyes, but also urgently needed. The INBLOX® Basic Repeater meets this requirements obviously.

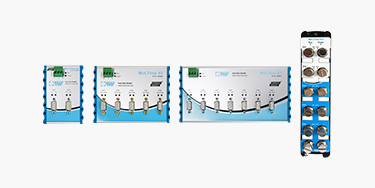

The head module without higher intelligence serves primarily as repeater and the compatible Diag Rep extension module enables a diagnosis via LED. The Basic Repeater creates up to five galvanically isolated segments in star structure.

Sample configuration Sample configuration

Extension modules

DP Diag Repeater X1 DP Diag Repeater X1

DP Diag Repeater X1

The module DP Diag Rep X1 with sub-D connector can open one segment. Up to five extension modules can be connected to the Basic Repeater and thus up to 10 segments per network can be provided. LEDs allow a simple diagnosis and monitoring.


DP Diag Repeater X2 DP Diag Repeater X2

DP Diag Repeater X2

The module DP Diag Rep X2 provided with two sub-D connectors each can open two segments. Up to five extension modules can be connected to the Basic Repeater and thus up to 15 segments per network can be provided. LEDs allow a simple diagnosis and monitoring.


DP Diag Repeater DP Diag Repeater

DP Diag Repeater X4

The extension module DP Diag Rep X4 is provided with four terminals and thus can open four segments. Up to five DP Diag Rep modules can be connected to the Basic Repeater, therefore 25 segments per network can be created. LEDs allow a simple diagnosis and monitoring and show the fieldbus status and the health of the network.

Intelligent Repeater

An evaluation of previous error telegrams, telegram repetitions, restarts of devices, edge stepnesses is provided by a connection to the E-head module with integrated web server.
